| SF-1W無鉛軸承 |
 |
 |
1、聚四氟乙烯與纖維混合物0.01-0.03mm
2、球形青銅粉0.2-0.3mm
3、鋼背0.7-2.3mm
4.電鍍層：鍍錫層厚0.005mm,或鍍銅層厚0.008mm | |
| 產品說明 |
| SF-1W無鉛軸承，是在SF-1材料基礎上根據國際環保要求而開發的一種新產品。該產品除廣泛適用于一般通用機械外，對食品機械、制藥機械、煙草機械尤其適用，無鉛效果符合歐洲衛生標準，是無油潤滑軸承發展的方向。 |
| 技術參數 |
最大承載壓力：140N/mm2
適用溫度范圍：-195~+280攝氏度
最高滑動速度：2m/s
摩擦系數：0.04~0.20
允許最高PV值（干）：3.6N/mm2 .m/s
允許最高PV值（油）：50N/mm2 .m/s |
| 應用特點： |
1、PTFE、纖維的混合物在運動時可形成很好的轉移膜保護對磨軸。
2、因其不含鉛，故對人體無害。
3、具有很好的承協載能力和耐磨性。
4、銅和鋼板具有良好的導熱性能。
5、表面的電鍍層具有較好的耐腐蝕性。
6、產品已廣泛運用于食品機械、醫療機械、煙草機械、飲料機械及其它綠色機械上。隨著
國際環保的逐步發展，SF－1W將是SF－1產品的替代品。 |
| SF-1W 化學特性 |
| 軸承型號 |
空氣中 |
真空中 |
水中 |
蒸氣中 |
弱酸中 |
中酸中 |
強酸中 |
堿性溶液中 |
| SF-1 |
好 |
好 |
好 |
好 |
差 |
否 |
否 |
好 | |
| SF-1W 端面摩擦磨損試驗 |
| 型號 |
試驗時間 |
試驗條件 |
摩擦系數 |
最終溫度
(攝氏度) |
最終磨損量
(mm) |
| 潤滑 |
速度 |
壓力 |
| SF-1W |
3hr |
干 |
0.4m/s |
3.5N/mm2 |
0.156 |
93 |
0.009 |
| SF-1W |
3hr |
油 |
0.4m/s |
3.5N/mm2 |
0.056 |
52 |
0.01 | |

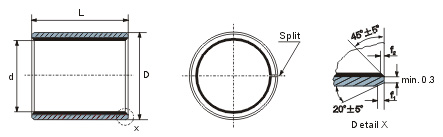

| SF-1W標準公差尺寸表 |
 |
 | |
|
|
相配軸徑公差 |
相配座孔公差
(H7 ) |
軸承外徑公差
tolerance |
壓入座孔后軸承內徑公差 |
Wall
thick-
ness
壁厚 |
f1 |
f2 |
| L0-0.40 |
(d≤φ30 L -0.3
d＞φ30 L -0.4) | |
|
6 |
8 |
10 |
12 |
15 |
20 |
25 |
30 |
40 |
50 |
60 |
|
6 -0.013
-0.028 |
8 +0.015 |
8 +0.055
+0.025 |
5.990
6.055 |
0.980
1.005 |
0.6 |
0.3 |
0606
|
0608
|
0610
|
|
|
|
|
|
|
|
|
|
8 -0.013
-0.028 |
10 +0.015 |
10 +0.055
+0.025 |
7.990
8.055 |
0806
|
0808
|
0810
|
08012
|
08015
|
|
|
|
|
|
|
|
10 -0.016
-0.034 |
12 +0.018 |
12 +0.065
+0.030 |
9.990
10.058 |
1006
|
1008
|
1010
|
1012
|
1015
|
1020
|
|
|
|
|
|
|
12 -0.016
-0.034 |
14 +0.018 |
14 +0.065
+0.030 |
11.990
12.058 |
1206
|
1208
|
1210
|
1212
|
1215
|
1220
|
1225
|
|
|
|
|
|
13 -0.016
-0.034 |
15 +0.018 |
15 +0.065
+0.030 |
12.990
13.058 |
|
|
1310
|
|
|
1320
|
|
|
|
|
|
|
14 -0.016
-0.034 |
16 +0.018 |
16+0.065
+0.030 |
13.990
14.058 |
|
|
1410
|
1412
|
1415
|
1420
|
1425
|
|
|
|
|
|
15 -0.016
-0.034 |
17 +0.018 |
17+0.065
+0.030 |
14.990
15.058 |
|
|
1510
|
1512
|
1515
|
1520
|
1525
|
|
|
|
|
|
16 -0.016
-0.034 |
18 +0.018 |
18 +0.065
+0.030 |
15.990
16.058 |
|
|
1610
|
1612
|
1615
|
1620
|
1625
|
|
|
|
|
|
17 -0.016
-0.034 |
19 +0.021 |
19 +0.075
+0.035 |
16.990
17.061 |
|
|
1710
|
1712
|
|
1720
|
|
|
|
|
|
|
18 -0.016
-0.034 |
20 +0.021 |
20 +0.075
+0.035 |
17.990
18.061 |
|
|
1810
|
1812
|
1815
|
1820
|
1825
|
|
|
|
|
|
20 -0.020
-0.041 |
23 +0.021 |
23 +0.075
+0.035 |
19.990
20.071 |
1.475
1.505 |
0.6 |
0.4 |
|
|
2010
|
2012
|
2015
|
2020
|
2025
|
2030
|
|
|
|
|
22 -0.020
-0.041 |
25 +0.021 |
25 +0.075
+0.035 |
21.990
22.071 |
|
|
2210
|
2212
|
2215
|
2220
|
2225
|
2230
|
|
|
|
|
24 -0.020
-0.041 |
27 +0.021 |
27 +0.075
+0.035 |
23.990
24.071 |
|
|
|
|
2415
|
2420
|
2425
|
2430
|
|
|
|
|
25 -0.020
-0.041 |
28 +0.021 |
28 +0.075
+0.035 |
24.990
25.071 |
|
|
2510
|
2512
|
2515
|
2520
|
2525
|
2530
|
2540
|
2550
|
|
|
28 -0.020
-0.041 |
32 +0.025 |
32 +0.085
+0.045 |
27.990
28.085 |
1.970
2.005 |
1.2 |
0.4 |
|
|
|
|
2815
|
2820
|
2825
|
2830
|
2840
|
|
|
|
30 -0.020
-0.041 |
34 +0.025 |
34 +0.085
+0.045 |
29.990
30.285 |
|
|
|
3012
|
3015
|
3020
|
3025
|
3030
|
3040
|
|
|
|
32 -0.025
-0.050 |
36 +0.025 |
36 +0.085
+0.045 |
31.990
32.085 |
|
|
|
|
|
3220
|
|
3230
|
3240
|
|
|
|
35 -0.025
-0.050 |
39 +0.025 |
39 +0.085
+0.045 |
34.990
35.085 |
|
|
|
3512
|
3515
|
3520
|
3525
|
3530
|
3540
|
3550
|
|
|
38 -0.025
-0.050 |
42 +0.025 |
42 +0.085
+0.045 |
37.990
38.085 |
|
|
|
|
3815
|
|
|
3830
|
3840
|
|
|
|
40 -0.025
-0.050 |
44 +0.025 |
44 +0.085
+0.045 |
39.990
40.085 |
|
|
|
4012
|
|
4020
|
4025
|
4030
|
4040
|
4050
|
|
|
相配軸徑公差 |
相配座孔公差
(H7 ) |
軸承外徑公差
|
壓入座孔后軸承內徑公差 |
壁厚 |
f1 |
f2 |
L0-0.40 |
|
20 |
25 |
30 |
40 |
50 |
60 |
70 |
80 |
100 |
115 |
|
45 -0.025
-0.050 |
50 +0.025 |
50 +0.085
+0.045 |
44.990
45.105 |
2.460
2.505 |
1.8 |
0.6 |
4520
|
4525
|
4530
|
4540
|
4550
|
|
|
|
|
|
|
50 -0.025
-0.050 |
55 +0.030 |
55 +0.100
+0.055 |
49.990
50.110 |
5020
|
|
5030
|
5040
|
5050
|
5060
|
|
|
|
|
|
55 -0.030
-0.060 |
60 +0.030 |
60 +0.100
+0.055 |
54.990
55.110 |
|
|
5530
|
5540
|
5550
|
5560
|
|
|
|
|
|
60 -0.030
-0.060 |
65 +0.030 |
65 +0.100
+0.055 |
59.990
60.110 |
|
|
6030
|
6040
|
6050
|
6060
|
6070
|
|
|
|
|
65 -0.030
-0.060 |
70 +0.030 |
70 +0.100
+0.055 |
64.990
65.110 |
|
|
6530
|
6540
|
6550
|
6560
|
6570
|
|
|
|
|
70 -0.030
-0.060 |
75 +0.030 |
75 +0.100
+0.055 |
69.990
70.110 |
|
|
|
7040
|
7050
|
7060
|
7070
|
7080
|
|
|
|
75 -0.030
-0.060 |
80 +0.030 |
80 +0.100
+0.055 |
74.990
75.110 |
|
|
7530
|
7540
|
7550
|
7560
|
7570
|
7580
|
|
|
|
80 -0.030
|
85 +0.035 |
85 +0.120
+0.070 |
80.020
80.155 |
2.440
2.490 |
1.8 |
0.6 |
|
|
|
8040
|
8050
|
8060
|
8070
|
8080
|
80100
|
|
|
85 -0.035 |
90 +0.035 |
90 +0.120
+0.070 |
85.020
85.155 |
|
|
|
8540
|
|
8560
|
|
8580
|
85100
|
|
|
90 -0.035 |
95 +0.035 |
95 +0.120
+0.070 |
90.020
90.155 |
|
|
|
9040
|
9050
|
9060
|
|
9080
|
90100
|
|
|
95 -0.035 |
100 +0.035 |
100 +0.120
+0.070 |
95.020
95.155 |
|
|
|
|
9550
|
9560
|
|
9580
|
95100
|
|
|
100 -0.035 |
105 +0.035 |
105 +0.120
+0.070 |
100.020
100.155 |
|
|
|
|
10050
|
10060
|
|
10080
|
|
100115
|
|
105 -0.035 |
110 +0.035 |
110 +0.120
+0.070 |
105.020
105.155 |
|
|
|
|
|
10560
|
|
10580
|
|
105115
|
|
110 -0.035 |
115 +0.035 |
115 +0.120
+0.070 |
110.020
110.155 |
|
|
|
|
|
11060
|
|
11080
|
|
110115
|
|
120 -0.035 |
125 +0.040 |
125 +0.170
+0.100 |
120.070
120.210 |
2.415
2.465 |
1.8 |
0.6 |
|
|
|
|
|
12060
|
|
12080
|
112100
|
|
|
125 -0.040 |
130 +0.040 |
130 +0.170
+0.100 |
125.070
125.210 |
|
|
|
|
|
12560
|
|
|
125100
|
125115
|
|
130 -0.040 |
135 +0.040 |
135 +0.170
+0.100 |
130.070
130.210 |
|
|
|
|
|
13060
|
|
13080
|
130100
|
|
|
140 -0.040 |
145 +0.040 |
145 +0.170
+0.100 |
140.070
140.210 |
|
|
|
|
|
14060
|
|
14080
|
140100
|
|
|
150 -0.040 |
155 +0.040 |
155 +0.170
+0.100 |
150.070
150.210 |
|
|
|
|
|
15060
|
|
15080
|
150100
|
|
|
160 -0.040 |
165 +0.040 |
165 +0.170
+0.100 |
160.070
160.210 |
|
|
|
|
|
16060
|
|
16080
|
160100
|
160115
|
|
180 -0.040 |
185 +0.046 |
185 +0.210
+0.130 |
180.070
180.216 |
|
|
|
|
|
|
|
|
|
|
18080
|
180100
|
|
|
190 -0.046 |
195 +0.046 |
195 +0.210
+0.130 |
190.070
190.216 |
|
|
|
|
|
|
|
19080
|
190100
|
|
|
200 -0.046 |
205 +0.046 |
205 +0.210
+0.130 |
200.070
200.216 |
|
|
|
|
|
20060
|
|
20080
|
200100
|
|
|
220 -0.046 |
225 +0.046 |
225 +0.210
+0.130 |
220.070
220.216 |
|
|
|
|
|
|
|
22080
|
220100
|
|
|
250 -0.046 |
255 +0.052 |
255 +0.260
+0.170 |
250.070
250.222 |
|
|
|
|
|
|
|
25080
|
250100
|
|
|
260 -0.052 |
265 +0.052 |
265 +0.260
+0.170 |
260.070
260.222 |
|
|
|
|
|
|
|
26080
|
260100
|
|
|
280 -0.052 |
285 +0.052 |
285 +0.260
+0.170 |
280.070
280.222 |
|
|
|
|
|
|
|
28080
|
280100
|
|
|
300 -0.052 |
305 +0.052 |
305 +0.260
+0.170 |
300.070
300.222 |
|
|
|
|
|
|
|
30080
|
300100
|
| |
