材料組織 MATERIAL STRUCTURE

SF-1P往復運動軸承是在SF-1材料的結構基礎上，根據往復運動的特殊工作條件而設計的新穎配方產品，其性能與國外DD2相似。

主要參數 TECHNICAL DATE

	靜承載	250N/mm2	摩擦系數		0.04~0.20
最大承載	低速運轉	140N/mm2	最大線速度	干摩擦	2m/s
	旋轉、搖擺運動	60N/mm2		流體潤滑	5m/s
最大PV值 (干摩擦)	間斷性運作	3.6N/mm2.m/s	導熱系數		42W(m.K)-1
	長期運作	1.8N/mm2.m/s	線膨脹系數		11x11-6K
使用溫度		-195℃~＋280℃

應用特點 APPLICATION CHARACTER

1.具有在新油情況下潤滑能力強，耐磨性好，保護的優點。
2.能較好的保護對軸表面的不受磨損。
3.對往復運動場合較能適用
4.產品適用于摩托車減震器，各種液壓油缸、液壓馬達、氣動元件等

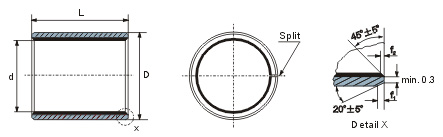

SF-1P標準公差尺寸表

相配軸徑公差

相配座孔公差
(H7 )

軸承外徑公差
tolerance

壓入座孔后軸承內徑公差

Wall
thick-
ness

壁厚

L0-0.40

(d≤φ30 L -0.3
d＞φ30 L -0.4)

6 -0.013
-0.028

8 +0.015

8 +0.055
+0.025

5.990
6.055

0.980
1.005

0.6

0.3

0606

0608

0610

8 -0.013
-0.028

10 +0.015

10 +0.055
+0.025

7.990
8.055

0806

0808

0810

08012

08015

10 -0.016
-0.034

12 +0.018

12 +0.065
+0.030

9.990
10.058

1006

1008

1010

1012

1015

1020

12 -0.016
-0.034

14 +0.018

14 +0.065
+0.030

11.990
12.058

1206

1208

1210

1212

1215

1220

1225

13 -0.016
-0.034

15 +0.018

15 +0.065
+0.030

12.990
13.058

1310

1320

14 -0.016
-0.034

16 +0.018

16+0.065
+0.030

13.990
14.058

1410

1412

1415

1420

1425

15 -0.016
-0.034

17 +0.018

17+0.065
+0.030

14.990
15.058

1510

1512

1515

1520

1525

16 -0.016
-0.034

18 +0.018

18 +0.065
+0.030

15.990
16.058

1610

1612

1615

1620

1625

17 -0.016
-0.034

19 +0.021

19 +0.075
+0.035

16.990
17.061

1710

1712

1720

18 -0.016
-0.034

20 +0.021

20 +0.075
+0.035

17.990
18.061

1810

1812

1815

1820

1825

20 -0.020
-0.041

23 +0.021

23 +0.075
+0.035

19.990
20.071

1.475
1.505

0.6

0.4

2010

2012

2015

2020

2025

2030

22 -0.020
-0.041

25 +0.021

25 +0.075
+0.035

21.990
22.071

2210

2212

2215

2220

2225

2230

24 -0.020
-0.041

27 +0.021

27 +0.075
+0.035

23.990
24.071

2415

2420

2425

2430

25 -0.020
-0.041

28 +0.021

28 +0.075
+0.035

24.990
25.071

2510

2512

2515

2520

2525

2530

2540

2550

28 -0.020
-0.041

32 +0.025

32 +0.085
+0.045

27.990
28.085

1.970
2.005

1.2

0.4

2815

2820

2825

2830

2840

30 -0.020
-0.041

34 +0.025

34 +0.085
+0.045

29.990
30.285

3012

3015

3020

3025

3030

3040

32 -0.025
-0.050

36 +0.025

36 +0.085
+0.045

31.990
32.085

3220

3230

3240

35 -0.025
-0.050

39 +0.025

39 +0.085
+0.045

34.990
35.085

3512

3515

3520

3525

3530

3540

3550

38 -0.025
-0.050

42 +0.025

42 +0.085
+0.045

37.990
38.085

3815

3830

3840

40 -0.025
-0.050

44 +0.025

44 +0.085
+0.045

39.990
40.085

4012

4020

4025

4030

4040

4050

相配軸徑公差

相配座孔公差
(H7 )

軸承外徑公差

壓入座孔后軸承內徑公差

壁厚

L0-0.40

100

115

45 -0.025
-0.050

50 +0.025

50 +0.085
+0.045

44.990
45.105

2.460
2.505

1.8

0.6

4520

4525

4530

4540

4550

50 -0.025
-0.050

55 +0.030

55 +0.100
+0.055

49.990
50.110

5020

5030

5040

5050

5060

55 -0.030
-0.060

60 +0.030

60 +0.100
+0.055

54.990
55.110

5530

5540

5550

5560

60 -0.030
-0.060

65 +0.030

65 +0.100
+0.055

59.990
60.110

6030

6040

6050

6060

6070

65 -0.030
-0.060

70 +0.030

70 +0.100
+0.055

64.990
65.110

6530

6540

6550

6560

6570

70 -0.030
-0.060

75 +0.030

75 +0.100
+0.055

69.990
70.110

7040

7050

7060

7070

7080

75 -0.030
-0.060

80 +0.030

80 +0.100
+0.055

74.990
75.110

7530

7540

7550

7560

7570

7580

80 -0.030

85 +0.035

85 +0.120
+0.070

80.020
80.155

2.440
2.490

1.8

0.6

8040

8050

8060

8070

8080

80100

85 -0.035

90 +0.035

90 +0.120
+0.070

85.020
85.155

8540

8560

8580

85100

90 -0.035

95 +0.035

95 +0.120
+0.070

90.020
90.155

9040

9050

9060

9080

90100

95 -0.035

100 +0.035

100 +0.120
+0.070

95.020
95.155

9550

9560

9580

95100

100 -0.035

105 +0.035

105 +0.120
+0.070

100.020

100.155

10050

10060

10080

100115

105 -0.035

110 +0.035

110 +0.120
+0.070

105.020
105.155

10560

10580

105115

110 -0.035

115 +0.035

115 +0.120
+0.070

110.020
110.155

11060

11080

110115

120 -0.035

125 +0.040

125 +0.170
+0.100

120.070
120.210

2.415
2.465

1.8

0.6

12060

12080

112100

125 -0.040

130 +0.040

130 +0.170
+0.100

125.070
125.210

12560

125100

125115

130 -0.040

135 +0.040

135 +0.170
+0.100

130.070
130.210

13060

13080

130100

140 -0.040

145 +0.040

145 +0.170
+0.100

140.070
140.210

14060

14080

140100

150 -0.040

155 +0.040

155 +0.170
+0.100

150.070
150.210

15060

15080

150100

160 -0.040

165 +0.040

165 +0.170
+0.100

160.070
160.210

16060

16080

160100

160115

180 -0.040

185 +0.046

185 +0.210
+0.130

180.070
180.216

2.415
2.465

1.8

0.6

18080

180100

190 -0.046

195 +0.046

195 +0.210
+0.130

190.070
190.216

19080

190100

200 -0.046

205 +0.046

205 +0.210
+0.130

200.070
200.216

20060

20080

200100

220 -0.046

225 +0.046

225 +0.210
+0.130

220.070

220.216

22080

220100

250 -0.046

255 +0.052

255 +0.260
+0.170

250.070

250.222

25080

250100

260 -0.052

265 +0.052

265 +0.260
+0.170

260.070
260.222

26080

260100

280 -0.052

285 +0.052

285 +0.260
+0.170

280.070

280.222

28080

280100

300 -0.052

305 +0.052

305 +0.260
+0.170

300.070

300.222

30080

300100
